SCS — Smart Connected Torque Tools (Freedom 4)

SCS Freedom 4 is a smart, connected digital torque solution with ±0.5% torque accuracy, patented obstacle and hand detection, wireless communication, and Industry 4.0 traceability for production and lab use.

SCS Freedom 4 is a cutting-edge digital torque solution offering precision, safety and connectivity — combining real-time traceability, intelligent obstacle and hand detection, advanced tightening strategies, and seamless Industry 4.0 integration.

Key features

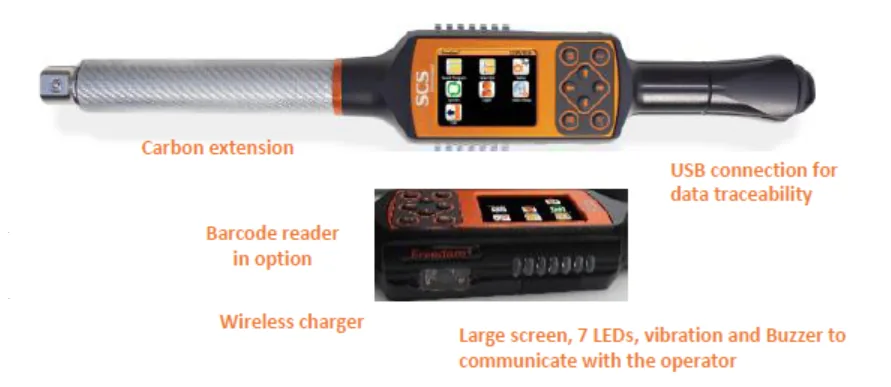

SCS Freedom 4 smart digital torque wrench with carbon extension, barcode reader and wireless charging

High accuracy
Torque ±0.5% of reading, angle ±1° over 360°, autonomy up to 8 hours.
Large memory
1,000 tightening programs, 20,000 results, 20,000 torque curves.
Intelligent safety
Patented obstacle detection, hand-position detection, and end-fitting recognition.
Fast & flexible
Start time under 5 seconds, wireless communication.

Tightening strategies

Torque only
Torque + angle
Yield
Yield + angle
Prevailing torque
PRW & LAB application modes for production and testing

FIM-EVO universal hub controller

One controller for complete control — manages up to 12 tools and 6 stations.

Web-server interface for easy setup
Up to 100,000 results and torque curves stored
Open Protocol, Toolsnet, XML, PFCS, IPM; optional Profinet/CAN-bus
7" colour touchscreen, 16 I/O (24V), USB/serial, Wi-Fi and Ethernet

CLS Click Wrench

Smart click, total control.

SCS CLS smart click torque wrenches with bidirectional RF communication

Autonomy 9–18 hours (5-hour charge)
Click accuracy ±4% (ISO 6789 compliant), torque ±1% of reading
Bidirectional RF communication
Stores torque & angle data; sends First Peak & Max torque to controller

Frequently asked

What makes SCS Freedom 4 safe?+

Patented obstacle detection prevents tool damage or misuse, hand-position detection ensures correct usage before activation, and end-fitting recognition confirms the right tool head is attached.

Is SCS Industry 4.0 ready?+

Yes — it offers wireless communication, full data traceability, barcode/VIN integration, and the FIM-EVO hub supports Open Protocol, Toolsnet, XML, PFCS and IPM.
